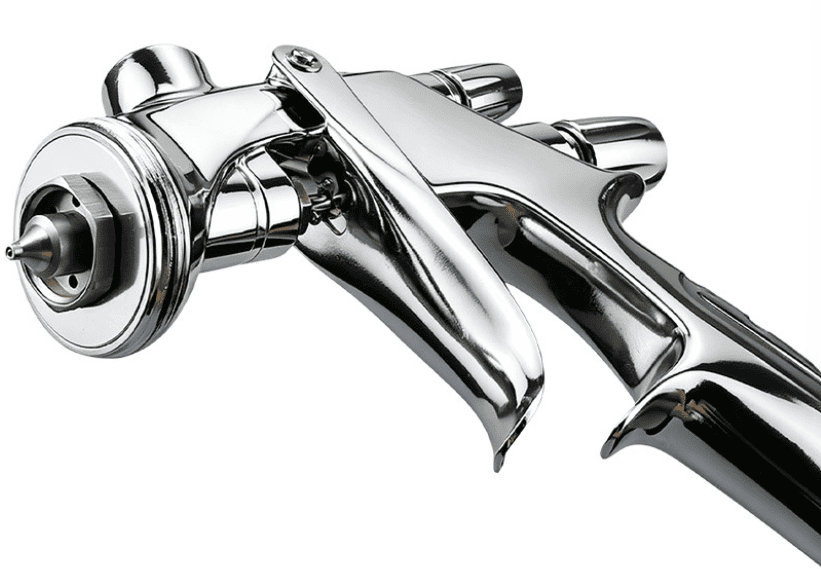

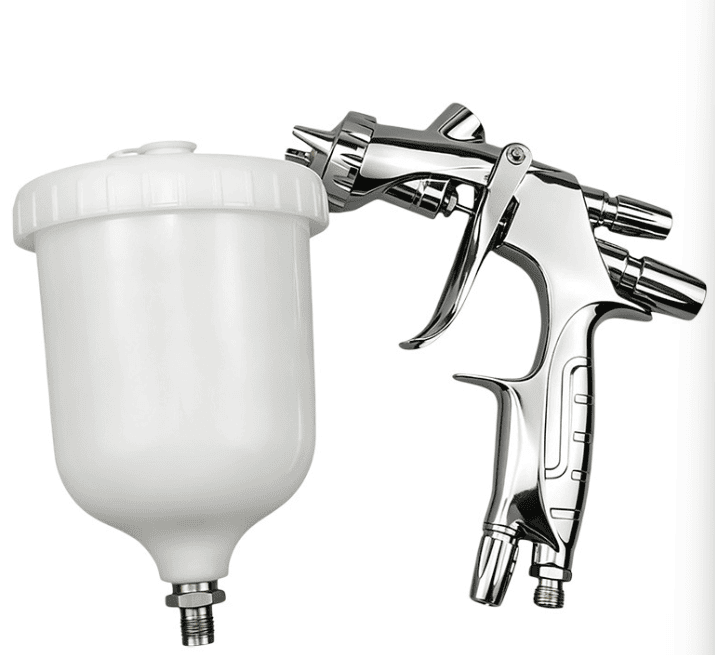

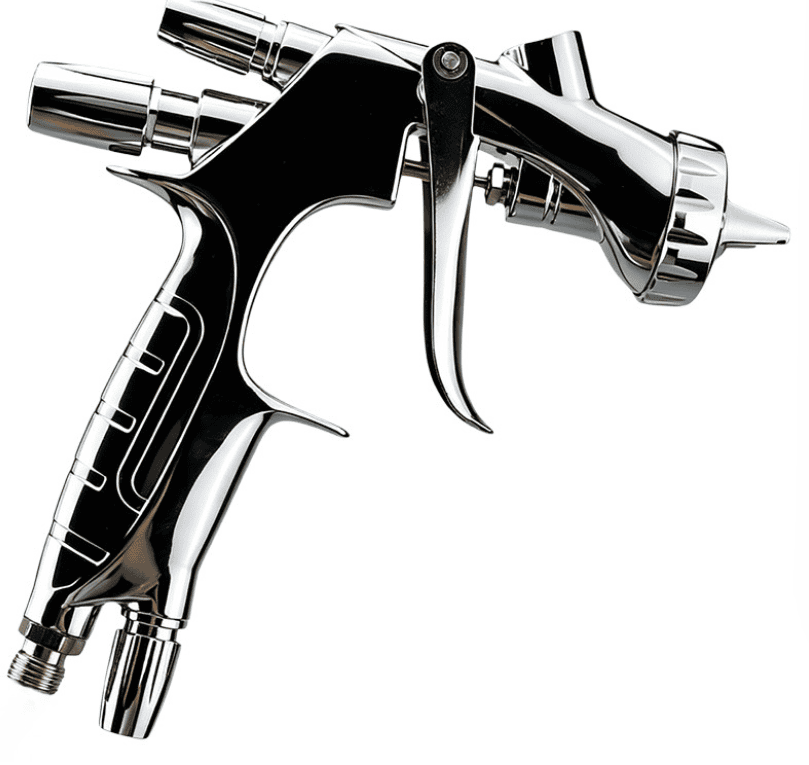

TZ8090 CLEAR PRO HVLP 1.3/1.4mm Clearcoat Spray Gun
The TZ8090 Professional Automotive Refinish Spray Gun is designed for automotive refinishing applications requiring a wide spray pattern, controlled atomization and comfortable handling.
Key Features
- Wide spray pattern up to 310 mm for efficient panel coverage
- Low operating pressure: 0.7–1.8 bar
- Lightweight 465 g gun body for improved handling and reduced fatigue
- Stainless-steel nozzle and needle for durability and corrosion resistance
- Electroplated brass air cap for stable air distribution
- Adjustable fan pattern for different panel sizes and spraying requirements
- Adjustable material flow for precise coating control
- Available with 1.3 mm, 1.4mm nozzle sizes
- Suitable for both waterborne and solvent-based automotive coatings
- Designed for professional automotive refinishing and general bodyshop applications
Product Details
With a maximum spray pattern of up to 310 mm, low operating pressure of 0.7–1.8 bar, and a lightweight 465 g gun body, TZ8090 provides good control and coverage for panel refinishing and general bodyshop work.
The spray gun is equipped with a stainless-steel nozzle and needle for durability and coating compatibility, together with an electroplated brass air cap for stable air distribution.
Technical Specifications
| Specification | TZ8090 |
|---|---|
| Spray Gun Type | Gravity Feed Automotive Spray Gun |
| Nozzle Sizes | 1.3 / 1.4 mm |
| Operating Pressure | 0.7–1.8 bar |
| Air Consumption | 400 L/min |
| Maximum Spray Pattern | 310 mm |
| Gun Body Weight | 465 g |
| Air Cap Material | Electroplated Brass |
| Nozzle & Needle Material | Stainless Steel |
| Air Inlet | G1/4* |
Applications
- - Automotive basecoat
- - Clearcoat
- - General refinishing
- - Metallic and solid-color coatings
- - Higher material delivery
- - Full-panel refinishing
- - General topcoat applications
