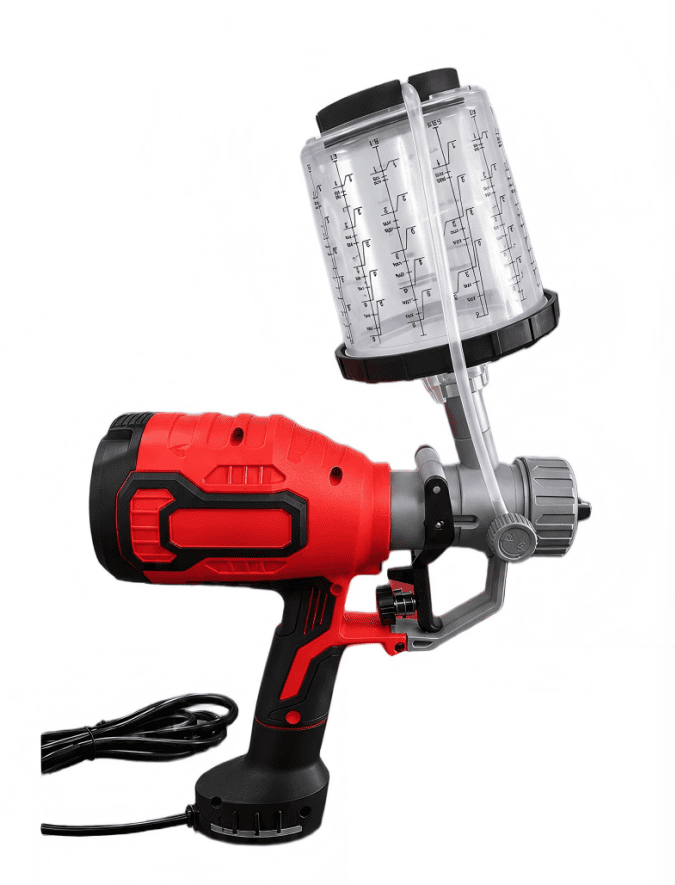

MZR800 800 W Electric HVLP Spray Gun

Automotive Spraying Without a Compressor

The MZR800 combines an 800W electric motor with HVLP spraying technology, eliminating the need for a separate air compressor and bulky air hoses. It is a practical solution for DIY automotive painters, garage enthusiasts and workshops handling small repair or refinishing jobs.

No external compressor required, simplifying setup for DIY automotive painting and small repair projects.
Pressure-assisted gravity feed helps maintain consistent paint delivery during spraying.
Interchangeable nozzles and adjustable controls allow setup to suit different compatible coatings and repair tasks.
Disposable cup liners simplify colour changes and reduce cup-cleaning work.
The spray gun, nozzle set, cup system and essential accessories are supplied together for convenient setup.

Download TDS Send Inquiry

Key Features

800 W self-contained electric HVLP system with corded power.
Top-mounted gravity-feed cup with pressure-assist tube.
Four interchangeable brass nozzles: 1.0, 1.3, 1.5 and 1.8 mm.
Adjustable spray fan, material flow and airflow.
Two-stage trigger delivers airflow first, followed by coating material.
PPS-style disposable liner and lid system.
Detachable nozzle components for cleaning and routine maintenance.
Ergonomic TPR grip and 5 m power cord.

Product Details

MZR800 Electric HVLP Spray Gun Kit

The MZR800 combines an 800W electric motor with HVLP spraying technology, eliminating the need for a separate air compressor and bulky air hoses. It is a practical solution for DIY automotive painters, garage enthusiasts and workshops handling small repair or refinishing jobs.

Package Contents

MZR spray gun with 800W motor and 5 m power cable
Four brass nozzles: 1.0, 1.3, 1.5 and 1.8 mm
PPS-style cup system with 10 disposable liners and lids
Pressure-assist kit
Cleaning brush, cleaning needle and flushing cup
User manual

Technical Specifications

Model	MZR800
Product Type	Corded electric HVLP spray gun
Rated Power	800 W
Rated Voltage / Frequency	230 V AC / 50 Hz (EU configuration)
Paint Feed System	Gravity feed with pressure assistance
Cup System	PPS-style disposable liner and lid system
Cup Capacity	600 mL
Nozzle Material	Brass
Included Nozzle Sizes	1.0 / 1.3 / 1.5 / 1.8 mm
Spray Controls	Adjustable fan, material flow and airflow
Trigger Operation	Two-stage: airflow first, then coating delivery
Power Cord Length	5 m
External Air Compressor	Not required

Applications

DIY automotive spot repairs and localized refinishing.
Bumper, trim and small body-panel painting.
Alloy-wheel and motorcycle-part refinishing.
Small custom-painting and general maintenance projects.

Frequently Asked Questions

Does the MZR800 require an air compressor?

No. The MZR800 has an integrated 800 W electric airflow system, so no external air compressor or compressed-air hose is required. It is a corded model and must be connected to a suitable power supply.

What applications is the MZR800 designed for?

The MZR800 is intended for DIY automotive spot repairs and localized refinishing, including bumpers, trim, alloy wheels, motorcycle parts and small body-panel repairs. It is not intended as a replacement for a professional spray-booth system. Always check coating compatibility and work-area suitability before use.

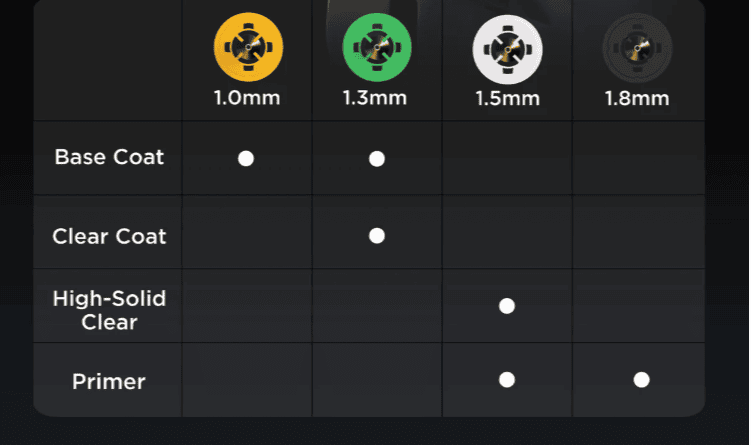

Which nozzle sizes are included?

The kit includes four interchangeable brass nozzles: 1.0, 1.3, 1.5 and 1.8 mm. Select the nozzle according to the coating manufacturer's recommendations, material viscosity and required finish. Always check the spray pattern and atomization on a test panel before painting the workpiece.

Can the MZR800 spray primer, basecoat and clearcoat?

The nozzle range supports selected compatible primers, basecoats and clearcoats. Suitability must be confirmed for the specific coating formulation and application conditions. Follow the spray gun instructions and the coating manufacturer's technical and safety data sheets. Do not assume that all solvent-based or two-component coatings are suitable.

What is the purpose of the pressure-assist system?

The pressure-assist system works with the top-mounted gravity-feed cup to help maintain consistent material delivery during spraying. Install the supplied pressure-assist components according to the operating instructions.

Does the MZR800 use disposable paint cups?

Yes. It uses a PPS-style disposable liner and lid system to simplify colour changes and reduce cup-cleaning work. Confirm the cup connection, sealing arrangement and pressure-assist compatibility before purchasing replacement consumables. Compatibility with every third-party PPS-style system is not guaranteed.

Can the MZR800 be used in a spray booth or hazardous area?

The MZR800 is not explosion-proof. Do not use it in classified hazardous areas, including spray booths or paint-mixing rooms where a flammable or explosive atmosphere may be present. This restriction also applies to other locations where spraying or cleaning could create such an atmosphere.

What is included in the standard kit?

The standard kit includes the MZR800 spray gun, four brass nozzles, a PPS-style cup system with 10 disposable liner-and-lid sets, pressure-assist components, cleaning accessories and a 5 m power cord. The confirmed quotation and packing list specify the supplied configuration.

How should the MZR800 be cleaned after use?

Follow the cleaning procedure in the operating instructions and use a cleaner compatible with both the coating and the spray gun components. Disconnect the power before disassembly. Clean the fluid path, nozzle and air cap promptly, and keep cleaning liquid away from the motor and electrical components.

How can distributors request samples or OEM packaging?

Contact TMILES with your target market, required electrical configuration, estimated order quantity and packaging requirements. Our team will confirm sample availability, packaging options, quotation and the documentation available for the proposed configuration.
