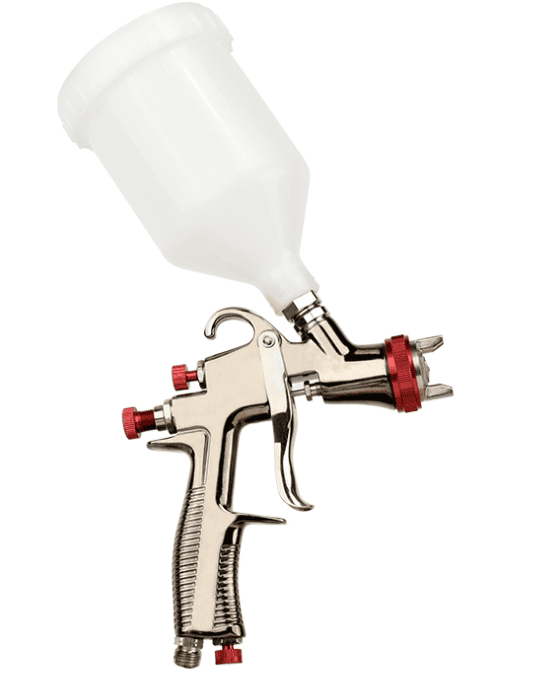

TS1050 Core LVLP Automotive Spray Gun 1.5mm

TMILES TS1050 CORE LVLP Spray Guns operates at below 10 psi at the air cap, reducing air consumption while maintaining efficient atomization.

Key Features

  • 1.LVLP Spray Gun: Use the lower volume of air finely atomizes, provides a higher transfer ofmaterials while reducing bounce back and overspray of 65% high transferefficiency rate, saving your time and cost.
  • 2. Heavy Duty& Design: One-piece all Stainless Steel gun body is plated with nickel, always bright like a new one, with brass nozzle for durability and longevity. Ergonomically designed handle for a comfortable grip, long-term operation is not easy to fatigue.

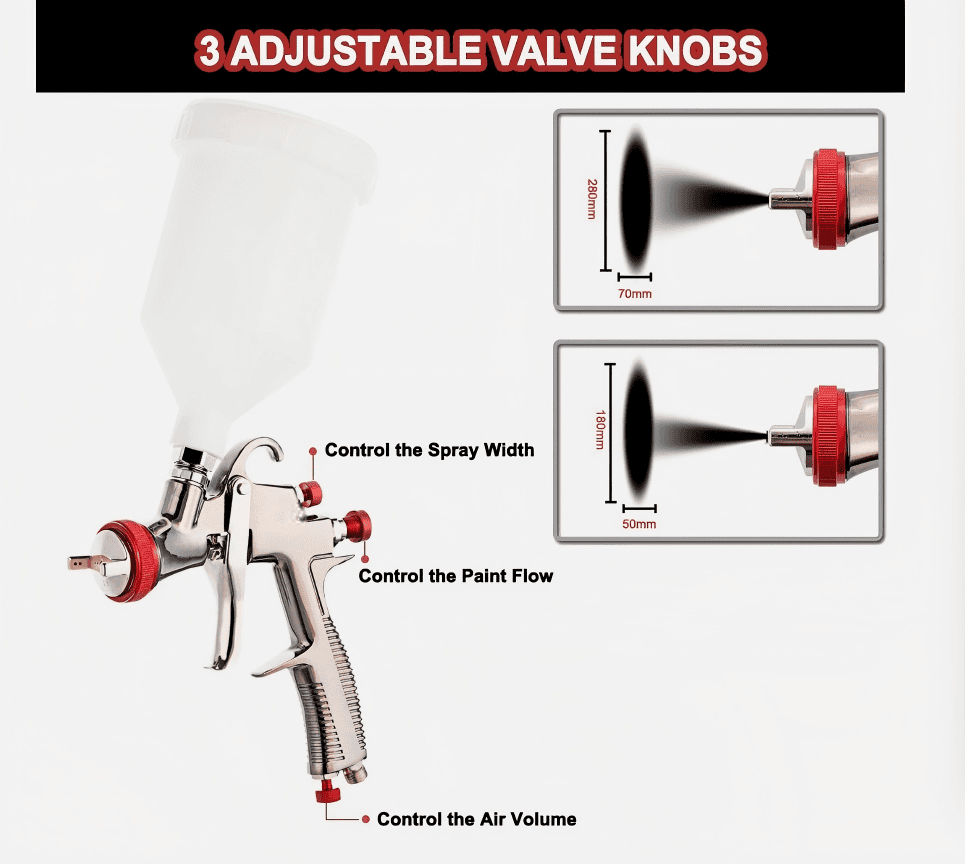

  • 3.Fastly and Accuratly: 3 adjustable knobs bring in concise painting,fluid control (needle adjust knob) regulates amount of paint sprayed, pattern control adjusts the fanpattern size, and air adjustment valve provides versatility to adjust air flow.

Product Details

TS1050 Core LVLP Spray Gun can operate at less than 10 psi at the nozzle cap as compared to HVLP which operates at 10 psi at the air cap and isusually pushed higher.
LVLP Spray Guns use lower volume of air finely atomizes paint creating a smooth finish with minimum overspray.
This means very little overspray will be produced,saving on paint cost and environmental hazards.

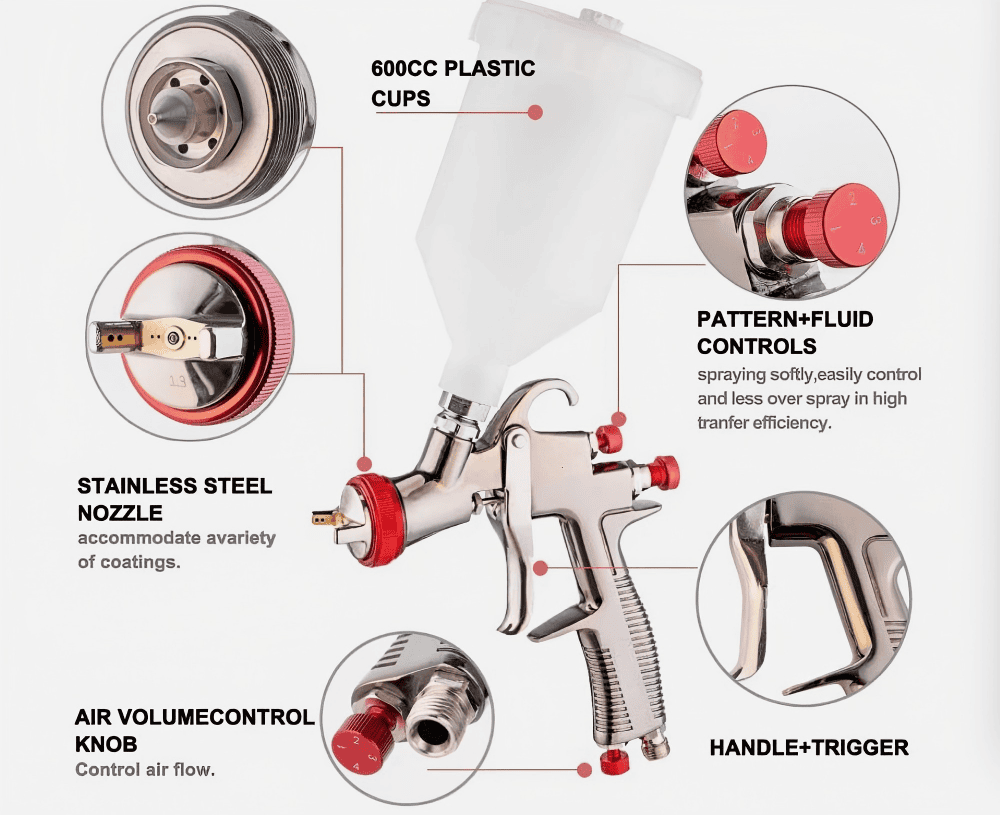

Stainless steel needle and nozzle accommodate a variety of coatings.

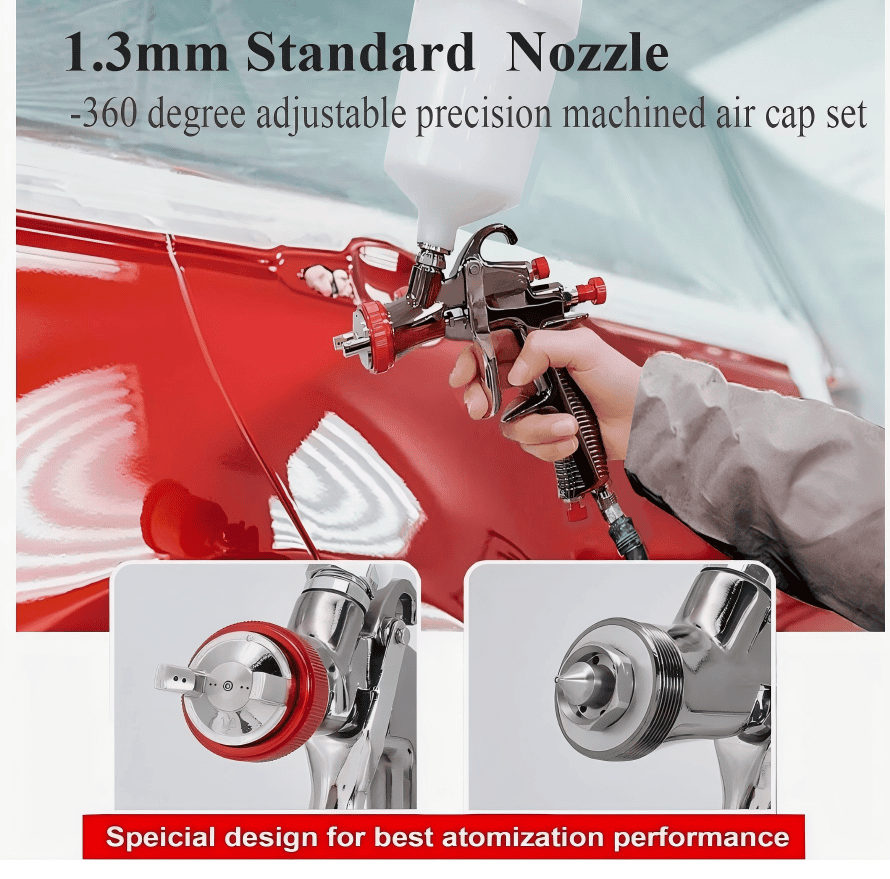

Precise machined air cap set.
Air Volume, paint volume and spraying pattern adjustable.
New ergonomic designed handle for comfortable grip.
Soft, super-fine mist suitable for all kinds of surface.



Technical Specifications

Model NoTS1050
Standard Nozzle Sizeφ1.5mm
Optional Nozzle Sizeφ1.3, φ1.7, φ2.0
Spraying width180-280mm
Air Consumption3.0-3.9cfm
Operating Pressure2.0-3.5 bar
Paint Capacity600cc
Flow Rate140-190 ml/min
